- ➣ Get start :
- ➣Powerful AI Single Board Computer for Edge Computing - The BPI-M6 features the powerful VideoSmart VS680 processor with an integrated NPU for up to 6.75 TOPs of AI processing power, well-suited for AI/ML applications.
- ➣4K Multimedia PBC with Quad-Core Cortex-A73 CPU - Perfect for smart displays, cameras and more, the BPI-M6 offers the full-featured VS680 SoC with a high-performance CPU and GPU for smooth 4K playback and encoding.
- ➣Alternative to Pi 4B with Enhanced Connectivity - Featuring GbE Ethernet, multiple USB 3.0 ports and HDMI in/out, the BPI-M6 outperforms the Pi 4B with better expansion and multimedia I/O options.
- ➣Integrated Neural Network Accelerator for Computer Vision - Purpose-built for AIoT, the BPI-M6 includes an NPU to run computer vision models on-device for tasks like facial recognition and object detection using dual cameras.
- Superior Performance Single Board Computer in a Small Package - Packed with powerful processing including a quad-core Arm CPU and high-end Imagination GPU, the compact BPI-M6 delivers flagship-level performance at an affordable mini PC size.

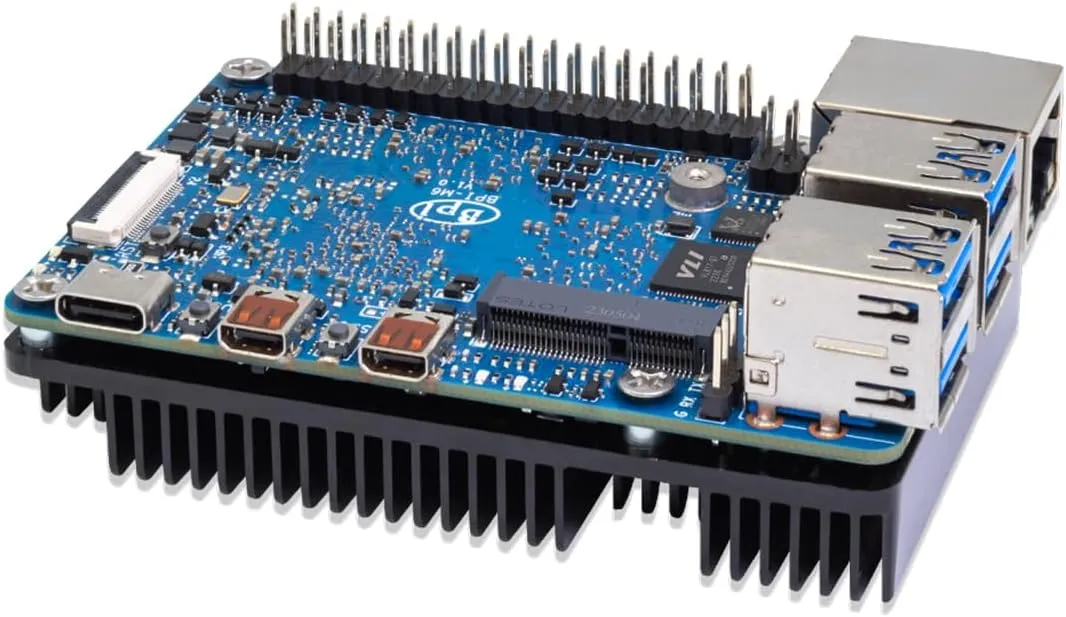

About BPI-M6 IOT Board
BPI-M6 powered by Synaptics VS680 quad-core Cortex-A73 (2.1GHz) and One Cortex-M3 processor,Imagination GE9920 GPU.and NPU Up to 6 .75Tops. Onboard 4GB LPDDR4 memory and 16GB EMMC storage, and supports 4 USB 3.0 interface, a gigabit network port.onboard 1 HDMI-rx port and 1 Hdmi-tx port.
Hardware spec:
CPU: Synaptics VS680 quad-core Cortex-A73 (2.1GHz) and One Cortex-M3 processor
GPU: Imagination GE9920 GPU
NPU for AI: Up to 6 .75Tops
Memory: 4 GB LPDDR4
Storage: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network: 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Video: 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) out, and 1 HDMI in Port
Audio Output(s): 1 x HDMI digital output
Display: MIPI DSI interface
M.2 interface: M.2 Key E(PCIe MIPI CSI)
USB ports: USB 3.0 PORT (x4)
GPIO: 40 Pin Header : GPIO (x28) and Power ( 5V, 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches: SPI boot and U-boot
LED: Power Status and Activity status
Power Source: 5 volt @3A TYPE C
Size & Weight: 92x60mm, 48g
OS: Android and Linux
If you have any question please check 'youyeetoo' free to ask
