- SPACE SAVING DESIGN: Inverter adopts independent air duct design, is superior. Interior upgrade design, more compact, saving more installation space
- WIDE APPLICATION：Inverter is widely used in all kinds of three phase asynchronous motor speed regulation, to achieve motor speed regulation, energy saving and , improve the production process, improve production efficiency and other functions
- OVERVOLTAGE SUPPRESSION PROTECTION: When the busbar voltage reaches or exceeds the busbar overvoltage suppression point during the operation of the converter, the converter will automatically adjust the running frequency suppression busbar voltage rise, so as to ensure that the converter will not cause overvoltage protection due to high busbar voltage
- OVERCURRENT SUPPRESSION PROTECTION: During operation, through real time monitoring of the load current, automatically limit does not exceed the set overcurrent suppression point, in order to prevent the fault trip caused by too much current. For some large inertia or drastic changes in the load, this function is especially suitable
- SAFE AND FLAME RETARDANT: Vector converter is made of industrial flame retardant ABS plastic, which features high impact and heat , high flame retardant, and high safety and reliability

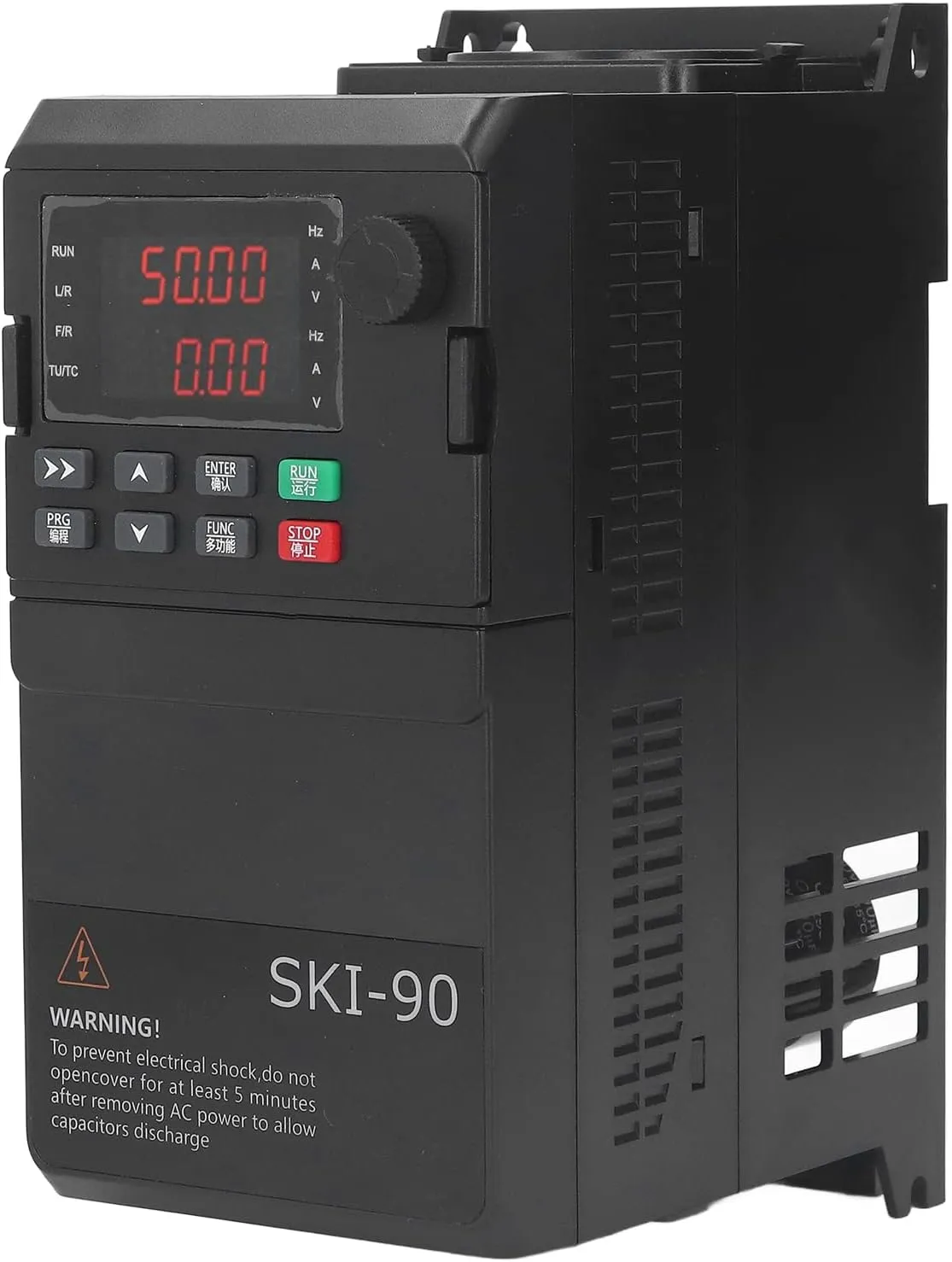

Item Type: Vector Frequency Converter
Material: Flame retardant ABS
Input: 3PH AC380V±15% 3.4A 50-60Hz
Output: 3PH AC0-380V 2.1A 0-400Hz
Power Supply Capacity: 1.5KVA
Adaptive Motor: 0.75KW 1HP
Category Terminal symbol Terminal name Function description
Power supply 10V-GND External 10V power supply External supply 10V power supply, maximum output current: 150mA (with short circuit protection)Generally used as an external potentiometer working power supply,Potentiometer range: 1kΩ~5kΩ
24V-COM External 24V power supply To provide external 24V power supply, generally used as a digital input/output terminal workPower supply and external sensor power supplyMaximum output current: 200mA
Analog terminal Al1-GND Analog input terminal 1 1. Input range: DC0V~10V/0mA~20mA, determined by parameter P4372, input impedance: voltage input impedance 22kΩ, current input impedance 500Ω
AI2-GND Analog input terminal 2 1. Input range: DC0V~10V/0mA~20mA, determined by parameter P4-372, input impedance: voltage input impedance 22kQ, current input impedance 500Ω
AO1-GND Analog output terminal 1 Output voltage range: 0V~10VOutput current range: 0mA-~20mA, 4-20mA (P5-23 optional)
AO2-GND Analog output terminal 2 Output voltage range: 0V-10VNo current output functionJ1 jumper cap on isolated main control board to AO2 position, non-isolated main control board does not have this function.
Digital input X1-COM Digital input 1 In addition to the characteristics of X1~X4, HD1 (X5) can also be used as a high-speed pulse input channel.Maximum input frequency: 50kHz1, input impedance: 1k02, level input voltage range: 5V~30V
X2-COM Digital input 2
X3-COM Digital input 3
X4-COM Digital input 4
HDI-COM Digital input 5
(X5 terminal) High speed pulse input terminal
A B- RS485 communication A is the positive
