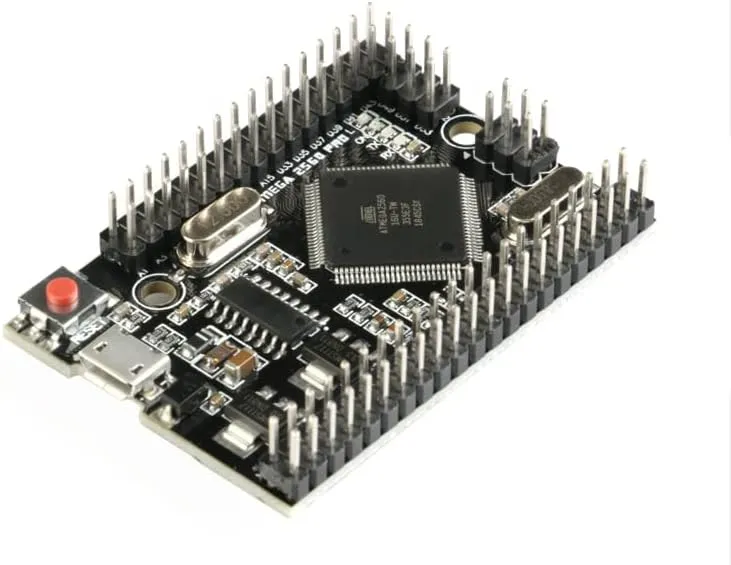

- Embedded version Mega2560 CH340G ATmega2560, compatible with Mega 2560 motherboard. Construction based on ATmega2560 microcontroller and USB-UART interface chip CH340G
- The printed circuit board has a compact size of 38x55mm. This is a good solution to get your final project on the welded prototype board
- It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz)
- The board uses the chip CH340G as the converter UART-USB. Provides stable data exchange results when you work at a frequency of 12Mhz (requires drivers to be installed on your computer)
- Mega PRO (Embedded) 2560 CH340G / ATmega2560 - Connect to your computer via a micro USB cable
Size: 38mmx55mm
Power the circuit board or pins through the MicroUSB connector
The voltage regulator (LDO) can handle the input voltage of 6V to 9V (peak 18V) DC
The output current is 5V - about 800mA, 3.3V - about 800mA (the higher the input voltage, the lower the output current)
This will provide a reliable impetus for most of your initial projects
