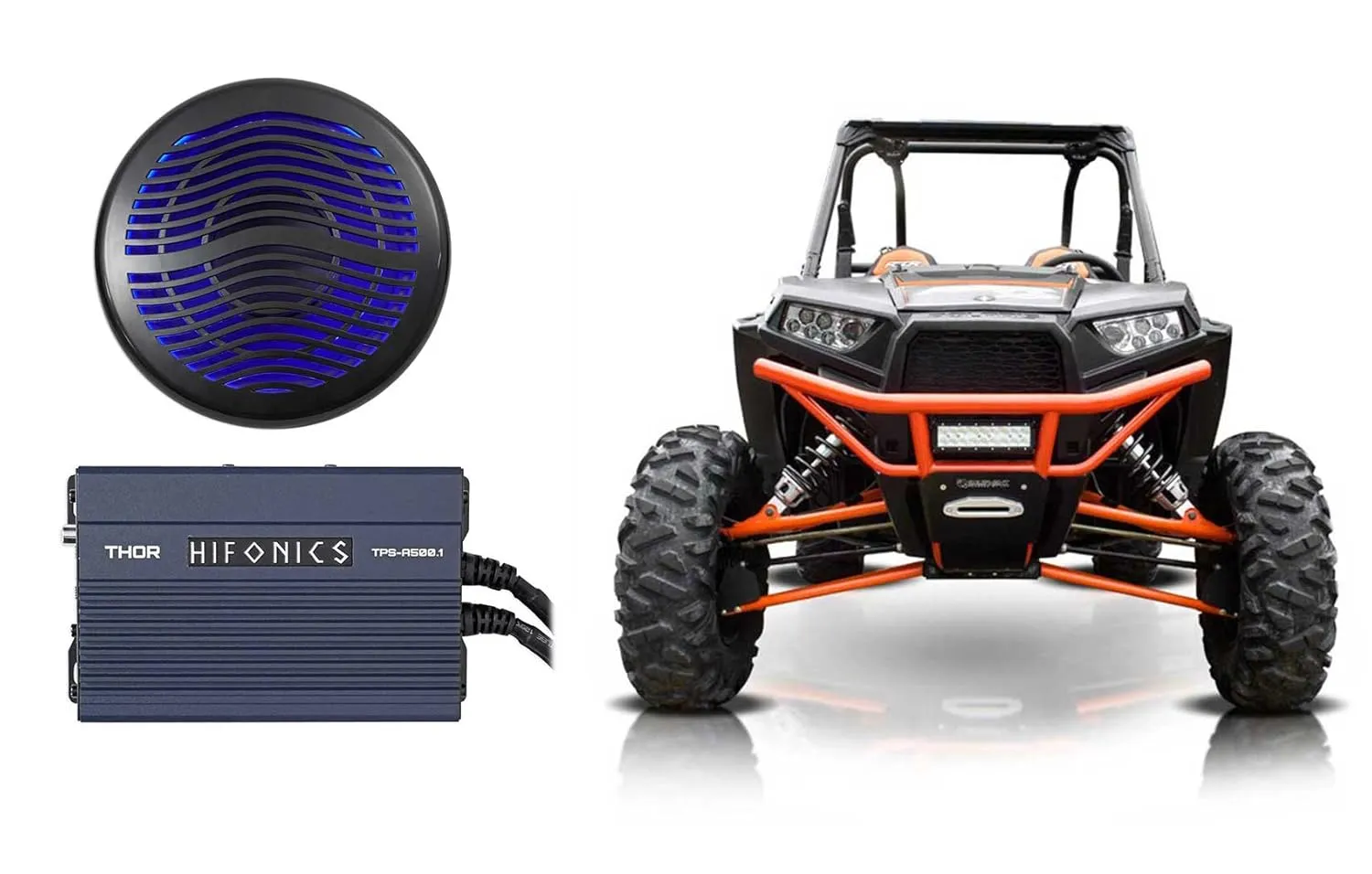

- Package Includes: (1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier Compatible with Polaris RZR/ATV/UTV/Cart. (1) RockviIle MS12LB 12" 2800 Watt Black Marine/Boat 12" Free Air Subwoofer w/ LED's. Features: Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier Compatible with Polaris RZR/ATV/UTV/Cart. Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
- Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reduces incoming noise from source units dramatically improving sound quality. Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofer system
- Crossover / Signal Shaping: LPF - Complete control of amplifier signal, essential when using two or more amplifiers. Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink. Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation. Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
- Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution. Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections
- Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DCand speaker short protection with lighted indicators on the amplifier end panel. Marinized / Waterproof: YES - Water resistant for durability in any environment. Specifications: Class: Full Range Class D. Variable Voltage: 0.2V~9V. Signal to Noise Ratio:>100dB. Frequency Response: 10Hz-300Hz. Crossover Type: Electronic 12dB Per Octave. Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
Bass Boost: 0-12dB@45Hz. Subsonic Filter: 60Hz. Power @ 2-Ohms: 1 x 500W. Power @ 4-Ohms: 1 x 250W. Total Channels: Mono. Audio Inputs: RCA. Power Terminal 12v/GND: Molex 10 ga. Speaker Terminal Wire Gauge: Molex Plug Connector. Fusing: 1 x 30 Amps. Certifications: Marine & Powersports. Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm). Weight: 2.09 lbs (0.95 kg). Features: RockviIle MS12LB 12" Marine Free Air Subwoofer with LED's. Free air subwoofer does not require any enclosure. Max Power: 2800 Watts. RMS Program Power: 1400 Watts. RMS Power: 700 Watts. Polypropylene cone with Rubber edge. 2.0" 4 Layer dual voice coil. Molded ABS plastic basket made with a special blend that is waterproof and un-breakable (if you literally jump on it, it will not break or bend). Magnet: 100 Oz double stacked magnet. Frequency response: 20Hz-4Khz. Impedance: Dual 4 Ohm. Sensitivity: 90dB. Total diameter:12.8". Cutout diameter:11". Mounting depth:6.1". Specifications: Free Air Resonance (Fs): 25.82 Hz. Electrical Q (Qes): 0.5402. Mechanical Q (Qms): 3.334. Total Speaker Q (Qts): 0.4649. Equivalent Compliance (Vas): 4.19 cu ft / 118.67 L. One-Way Linear Excursion (Xmax): 0.41 in / 10.5 mm. Reference Efficiency (No): 0.36%. Efficiency (1 W / 1 m): 88 dB SPL. Effective Piston Area (Sd): 79.2 sq in / 0.0511 sq m. DC Resistance (Re): 3.4 Ohms Hifonics THOR compact 500 watt mono Powersports amplifier to for a subwoofer with on-board equalization and simple instalation with quick release connectors. Features:
- Is Discontinued By Manufacturer : No
- Package Dimensions : 9.6 x 6.8 x 3.2 inches; 17.75 Pounds
- Date First Available : September 2, 2017
- Country of Origin : China
