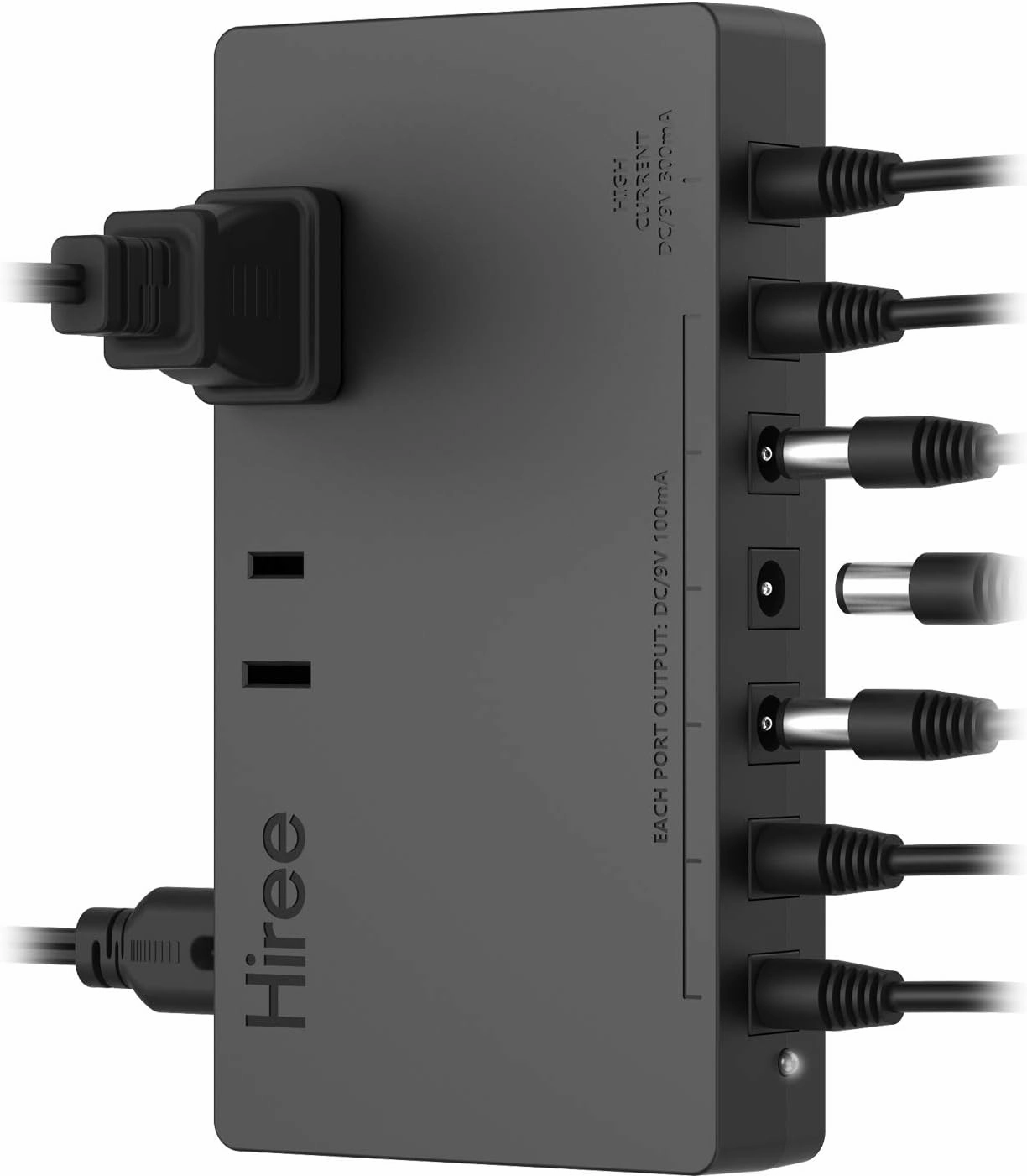

- 【7 WAY ISOLATED OUTPUT】Hiree power supply is designed for effect pedal. 7 Individual output: 9 Volt 100mA port x 6, 9V 300mA port x 1. Short circuit in one channel won't affect other channels function.

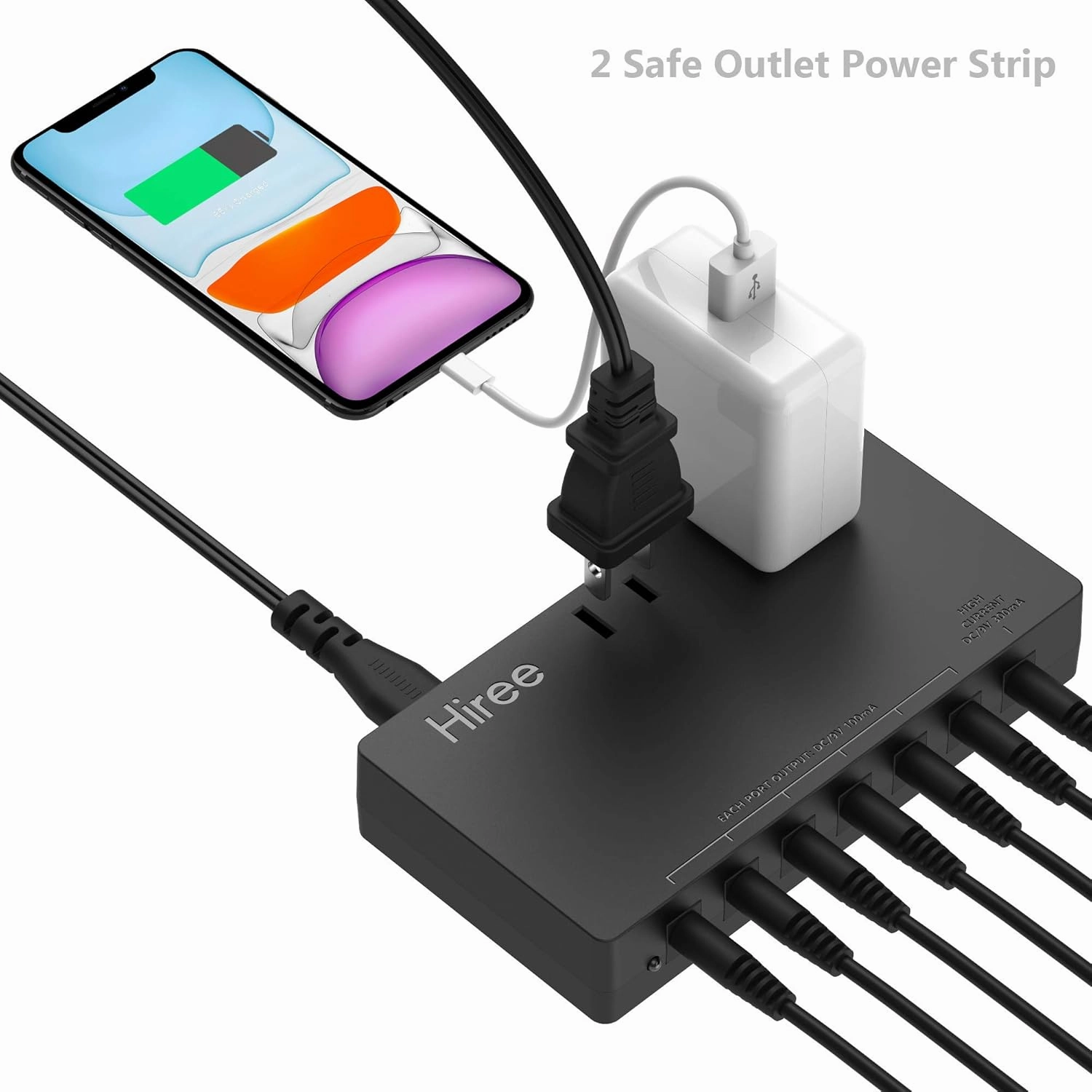

- 【2 Safe Outlet Power Socket】2 x 2 prong outlet, You can charge your Pedal, Speaker, Keyboard Musical Instruments and other devices with this outlets power strip.AC Outlet Total Output 600W.
- 【SHORT-CIRCUIT / OVER-CURRENT PROTECTION:】All 7 outputs in this unit have separate short-circuit protection, i.e. short circuit in one channel won't affect other channels' function.
- 【NOISE FILTERING】This guitar pedal power brick is built in a powerful noise filter. It is so quiet that you can enjoy playing with clear and firm sound.
- 【Compact Size and No External adapter】Compact body and 5ft disconnectable AC power cord, very easy to manage and carry everywhere you go. for maximum space-saving at home or in your travel bag.Wide range input voltage from 100v to 240v is ideal for international travel.
Short-circuit protection
All 7 outputs in this unit have separate short-circuit protection, i.e. Short circuit in one channel won't affect other channels' function. Under the circumstances of all LED lights on, LED light of the short-circuited channel will off, while lights in the other normal channels are still on. This helps locating the faults when there were short circuits among many effectors.
Specifications:
Material: Fireproof Plastics ( ABS PC )
AC Rated Input: 110-240V , 50/60Hz
AC Outelet Rated Output: AC 100-240V , 50/60Hz, 600W
Power Up State: US 2-Prong Plug
AC Power Cord: 5Ft Detachable Cable
item weight: 500g.
Item Size: 5*2.7*0.9 in
DC Output :
- 6 way 9v 100ma.
- 1 way 9v 300ma.
Connection:
Included cables use industry standard 5.5mm x 2.1mm positive barrel, negative center polarity plugs.
Attention:
Incorrect polarity would damage thisunit, please make sure correct positive and negative polar before wiring.
