- Resolution adaptation: Supports multiple resolutions for input and output, compatible with old standard definition TVs and high-definition devices, meeting different image quality requirements.
- Image quality optimization: Improve the color, contrast, and details of the picture, and even ordinary sources can present clear effects.
- Multi system compatibility: compatible with multiple mainstream intelligent systems, supports multiple APP downloads and voice control, and can be directly replaced without modification.
- Interface configuration: Equipped with multifunctional interfaces, compatible with multiple external devices, expanding usage scenarios.
- Compact accessories: small in size, shallow in depth, suitable for various thin TV bodies, and suitable for installation in small spaces of old models.
- Energy saving and low consumption: Low power consumption when idle, reducing brightness to save energy.

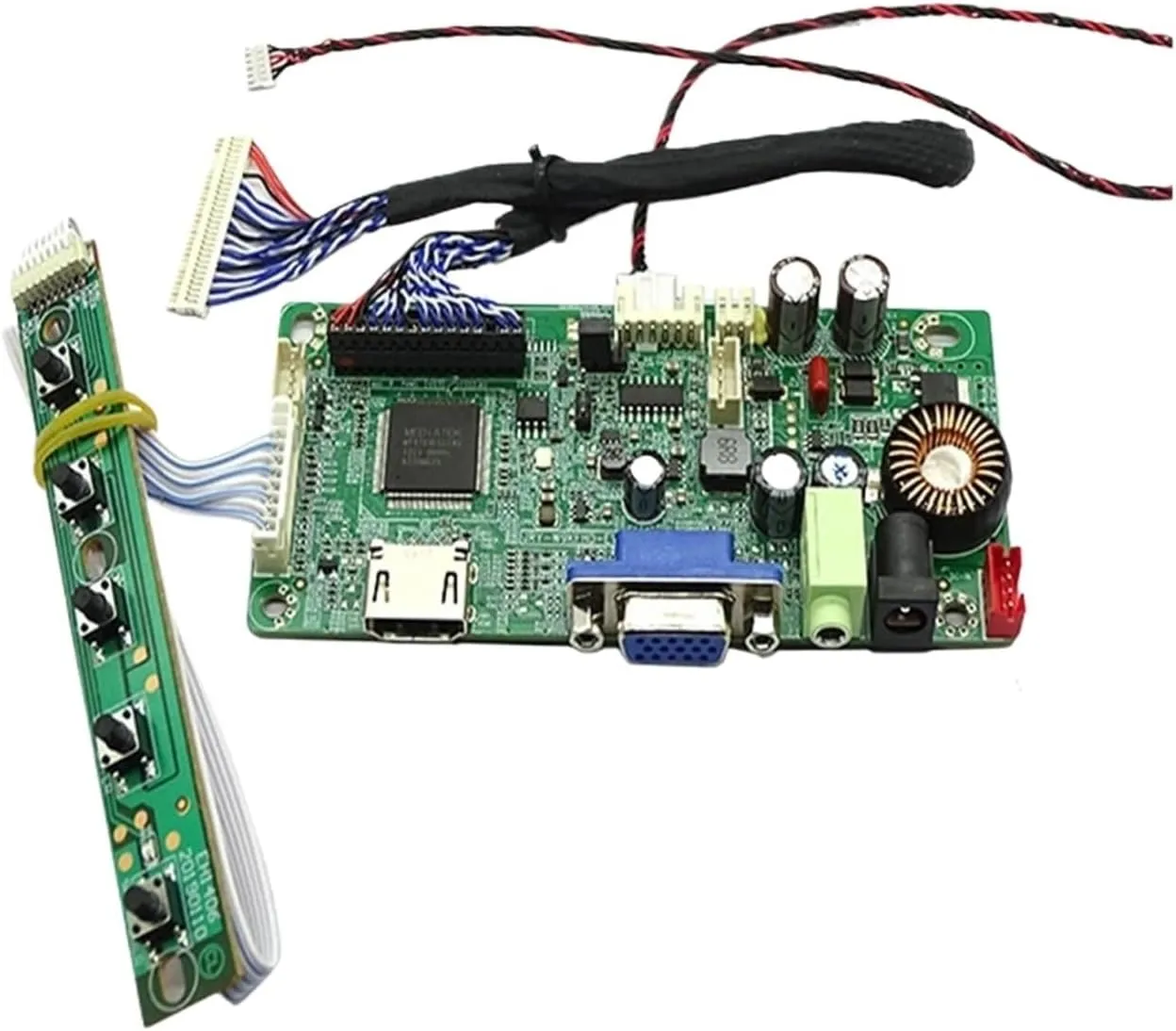

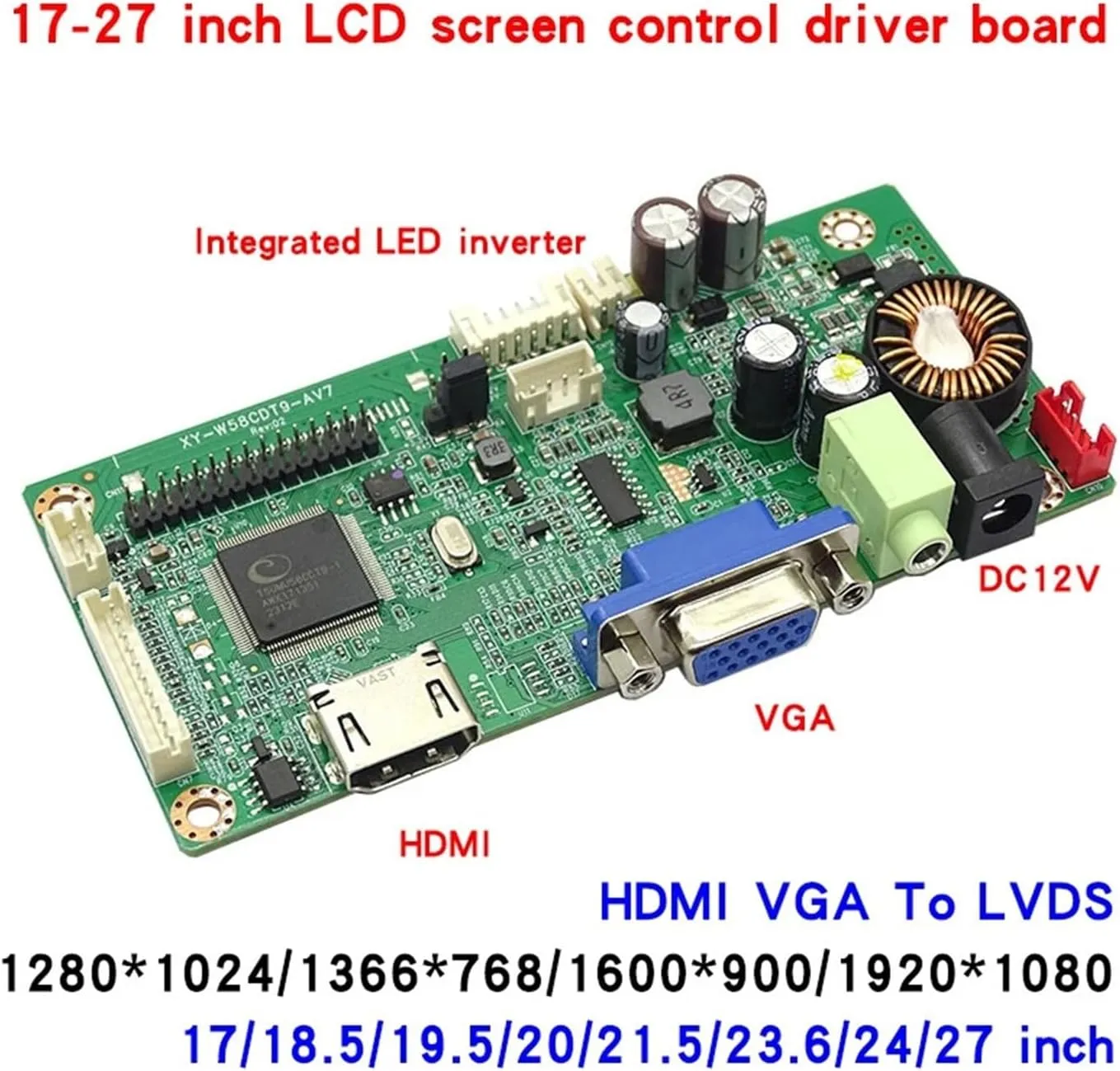

This control driver board can support 1920 * 1080 LCD screens.
The control driver board integrates an LED backlight circuit, eliminating the need for additional backlight inverters.
Supports two port inputs of HDMI VGA, using 12V5A power supply. You can purchase power adapters in my store.
17/19 inch selection 1280 * 1024 for example : M170ETN01.1
18.5 inch selection 1366 * 768 for example : M185XTN01.2
Choose 1600 * 900 for 19.5/20 inches for example : M195FGE-L20 M200FGE-L20
Choose 1920 * 1080 for 21.5/23.6/24/27 inches for example : M215HTN01.1 / HM236WU1-100 /M240HTN01.1 /M270HTN01.1
If you have any other screen models, you can let me know and I will configure the control driver board for you. The price is more favorable for larger quantities. Welcome to discuss with me!
==========
Compatible Audio & Video Equipment Style : Display Equipment
Origin : Mainland China
Dear customer, thank you for coming! We are committed to providing you with attentive service. If you can't find the product or part you need, you can consult me and I will help you solve the problem! Happy shopping!
